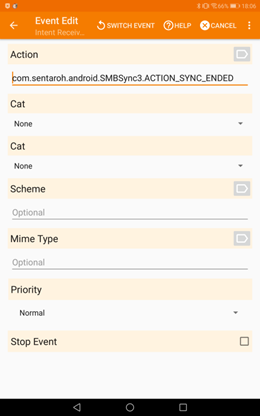

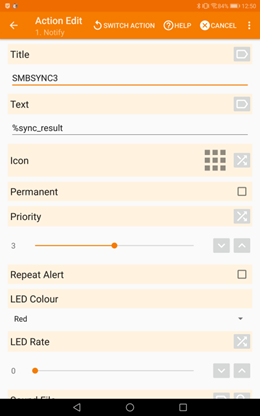

5.2.Notification of synchronization start and end

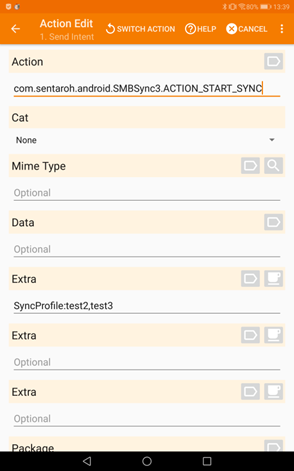

5.3.Sample code for start SMBSync3 by Application
7.About collecting and sending data in the app
1.Function
SMBSync 3 is a tool for synchronizing files via wireless LAN using SMB1, SMB2 or SMB3 protocol between the internal storage of Android terminal, SDCARD and PC/NAS. Synchronization is a one-way from the source to the destination, mirror, move, copy, archive can be used. (Internal storage, SMB, ZIP combination is possible)
You can start the synchronization by external application (Tasker, AutoMagic etc) or SMBSync2 schedule. Please refer to the Starting from other applications for interface with an external application.
Mirror
If source and destination files are different(*1), to copied files from source to the destination directory. To delete destination files and directories if does not exist in the source.
Move
If source and destination files are different(*1), to copied files from source to the destination directory. To delete the source directories and files copied to the destination.
However, the source and destination same name, same file modification time and file size, to delete the file on the source without copying files.
Copy
If source and destination files are different(*1), to copied files from source to the destination directory. However, the same file modification time and file size with the same name does not copy the source and destination.
Archive
Move photos and videos in the directory on the source side to the destination under conditions such as shooting date/time than the date and time of archive execution, such as 7 days or earlier or 30 days or earlier. (However, ZIP can not be used for destination)
*1 Copy or move when any of the following three conditions are satisfied. However, you can ignore the file size and last update time in the sync task options.
File does not exist
Different file sizes
Different over when last updated 3 seconds
2.Sync Task
2.1.Sync Task option
Test mode
It does not perform overwrite and delete the file if you check. Please be tested when you create a synchronization task, files that are copied or deleted can be found in the message tab.
Auto sync task
If checked the task to the automatic. Tasks that are set to automatic synchronization will start when you press the sync button.
Task name
The name of the synchronization task cannot be a duplicate name. Names are case insensitive.
Sync type
The sync method is selected from mirror, copy, move, archive. Sync is done from Source to Destination one direction.
Mirror
Move
Copy
Archive
Swap the source and destination
Swap the contents of the source folder and the destination folder
Source folder
Tap the button to edit source folder
Destination folder
Tap the button to edit destination folder
Select files for sync
If you do not check and then sync all of the file. If you check to see details.
Sync audio files
If you check to synchronize the files of the following extensions.
aac, aif, aifc, aiff, kar, flac, m3u, m4a, mid, midi, mp2, mp3, mpga,
ogg, ra, ram, wav
Sync image files
If you check to synchronize the files of the following extensions.
bmp, cgm, djv, djvu, gif, ico, ief, jpe, jpeg, jpg, pbm, pgm, png, tif, tiff
Sync video files
If you check to synchronize the files of the following extensions.
avi, m4u, mov, mp4, movie, mpe, mpeg, mpg, mxu, qt, wmv
File filter
You can select the name and extension of the file you want to synchronize with other than the above.(Refer to 2.5.File selection filter)
Select sub directories for sync
If you do not check and then sync all of the sub directory. If you check to show directory filter button.
Directory filter
You can select the name of the directory you want to synchronize.
(Refer to 2.6.Directory selection filter)
Execute sync task only when charging
If checked, you can start sync only while charging. If sync is started when not charging it will result in an error.
Confirm before override copy or delete
It will display a confirmation dialog when you want to overwrite and delete the file if you have checked.
Network
Run even when off
You can always start syncing
Conn to any AP
Sync can start if the wireless LAN is connected to the any access point.
Access point list
You can start synchronization when the connected access point is registered. Click the " Access Point List" button to register an access point.
Has private address
You can start synchronization when a private IP address is assigned.
IP Address List
You can start synchronization when an assigned IP address is registered. Click the "IP address list" button to register the access point.
If it is not connected to the
specified access point Skip the task and start the next task
In any of the following cases, the subsequent task is executed without an error.
Access point is not registered
IP address is not registered
Allow sync with global IP
addresses
If checked, allows synchronization even if the network address is a global address.
Stop syncing when an error occurs
If it is not checked, sync continue when sync task ended with error.
Sync subdirectory
If checked, sync the subdirectory.
Sync a empty directory
If checked, sync the empty directory .(Create a empty directory on the destination)
Sync a hidden directory
If checked, sync the hidden directory.(The name of the hidden directory starts from "." In Android, since it is represented by a bit in the directory and not the name of the directory on Samba and Windows, the directory that was created will not be in a hidden directory)
Sync a hidden file
If checked, sync the hidden file.( The name of the hidden file begins with "." In Android, since it is represented by a bit in the directory and not the name of the file with Samba and Windows, the file that is created will not be hidden files)
Overwrite detination file(s)
If checked, overwrite the file if same file exists.
Retry on network error
Retry the sync only error on the remote side. Retry is done up to three times, is carried out after 30 seconds from the error occurred retry each.
Delete files prior to sync(Mirror
method only)
If checked, delete the destination file that does not exist on the source, and then copy the difference file with the source.
Do not set the last update time of
destination file to match source file
If checked, the last update time of the file copied from the source will be the time the file was copied. The difference judgment is judged by the existence of the existence of the file and the file size.
Limit the SMB I/O write buffer to
16KB
If you check to limit the IO buffer at the time of remote file writing to 16KB.
Use file size to determine file
difference
If checked, if the last update time of the file is different, it is determined as a difference file.
Files are different only when the
source is larger than the destination
If checked, the file is overwritten only when the source file is newer than the destination file, even if the file size and last update time are different.
Minimum age period(in seconds)
between sourceand destination file for synchronization
No change within the specified time difference.
Do not overwrite destination file
if newer than source file
If checked, the file will be overwritten only when the source file is newer than the destination file even if the file size and the last update time are different.
Skipping directories or files name
that contain invalid characters (", :, \, *, <, >, |)
If checked, it will display a warning message without processing directories/files containing unusable characters and process the following directories/files.
(Syc type only moves) Delete the source
directory when the source drectory is empty
If the source directory is empty after moving from the source directory to the destination directory, delete the source directory.
If the date and time cannot be
determined by EXIF data, a comfirmation message is displated
Display a confirmation message when the taken date and time cannot be obtained from Exif.
Ignore source files that are larger
than 4 GB when sync to external storage
If checked, ignore source files larger than 4GB in size when syncing to local storage, preventing I/O errors when syncing to a MicroSD card.
Ignore files whose file names
exceed 255 bytes
If checked, ignore files whose destination file name exceeds 255 bytes. If not checked, synchronization will be terminated with an error.

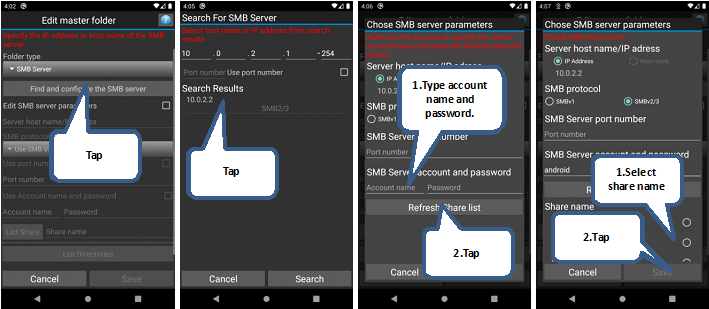

Find and configure the SMB server
Scan the network and select from the SMB server list to configure.
The following figure is an example of the setting screen.
Edit SMB server parameters
Manually set the parameters for the SMB server.
Server host name/IP address
To specify SMB server name or IP address
SMBProtocol
You can specify SMB protocol.
Use SMB V1
Use SMB V2/3(2.12)
Use port number
Specify if the port number of the standard is not available. The standard port number is 139/tcp and 445/tcp.
Use Account name and password
It specifies whether to use the SMB server account name and password
Account name
To specify account name for SMB server.
Password
To specify password for SMB server.
List share
Show share name for SMB server.
List Directories
Show SMB server directory list.
Directory
To specify directory for SMB host.If the destination directory does not exist, it will be created at the time of synchronization.
Note: Under the following conditions, it becomes a circular reference and loops. Specify a directory filter or specify a directory on the source side that is different from the destination.
No directory specified when the same SMB server is specified for source
and destination
No directory filter specified
The following is only displayed when the synchronization type is Archive.
Save all files in the destination directory without creating
subdirectories
If checked, the destination directory will not have any sub-directories included in the source directory.
To archive the
Select a file with a shooting date and time older than the archive execution date and time. (Regardless of the shooting date and time, the shooting date is 7 days or older, the shooting date is 30 days or older, the shooting date is 60 days or older, the shooting date is 90 days or older, the shooting date is 180 days or older, the shooting date is You can choose from more than one year old)
Sequence number
You can add a sequence number to the file name.
Edit file name parameter
To include the date and time in the file name, tap the button and edit.
Local storage
Select the storage to use.
Allow use external storage
Request permission to use external storage. If you format the MicroSD card, the UUID will change, so request permission to use it.
(Refer to 2.7. How to allow access to SDCARD/USB media)
List Files
Show directory list for local storage.
Directory
To specify directory for local storage. If the destination directory does not exist, it will be created at the time of synchronization.
Note: Under the following conditions, it becomes a circular reference and loops. Specify a directory filter or specify a directory on the source side that is different from the destination.
No directory specified for source and destination
No directory filter specified
The following is only displayed when the synchronization type is Archive.
Save all files in the destination directory without creating
subdirectories
If checked, the destination directory will not have any sub-directories included in the source directory.
To archive the
Select a file with a shooting date and time older than the archive execution date and time. (Regardless of the shooting date and time, the shooting date is 7 days or older, the shooting date is 30 days or older, the shooting date is 60 days or older, the shooting date is 90 days or older, the shooting date is 180 days or older, the shooting date is You can choose from more than one year old)
Sequence number
You can add a sequence number to the file name.
Edit file name parameter
To include the date and time in the file name, tap the button and edit.
Local storage
Select the storage to use.
Allow use external storage
Request permission to use external storage. If you format the MicroSD card, the UUID will change, so request permission to use it.
(Refer to 2.7. How to allow access to SDCARD/USB media)
List files
Show file lists.
ZIP File name
Specify ZIP file name.
Compression level
Select compression level.
Fastest
Fast
Normal
Maximum
Encryption method
None
ZipCrypto
AES128 Bit
AES256 Bit
Password
Specify password for encryption.
Confirm
Re-enter password for confirmation.
2.5.File selection filter
File selection filter is used to select the files you want to synchronize.
You can choose the selection and exclusion. If you enter both the selection and exclusion is a priority excluded.
If you enter two or more filters to select the file under the conditions OR.
Include/Exclude
Specifying selection or exclusion filters
Add
Add the contents entered in the filter field as a filter
Filter
Filter value. Enter DSC * .JPG etc.
Do not enter file selection filters with regular expressions.
2.6.Directory selection filter
Directory selection filter is used to select the directories you want to synchronize.(You can choose the selection and exclusion. Exclusion takes precedence If you enter both the selection and exclusion filters.)
If you enter two or more filters to select the file under the conditions OR.
Include/Exclude
Specifying selection or exclusion filters
Add
Add the contents entered in the filter field as a filter
Filter
Filter value. Enter DIR/USB etc.
Do not enter file selection filters with regular expressions.
Matches from beginning of subdirectory
path
Selects and excludes matches from the beginning of the subdirectory path.
If not checked, those with matching subdirectory names will be selected / excluded.

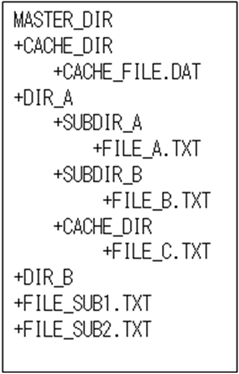

1. When "Match from the beginning of subdirectory path" is checked
If
you specify "DIR_A". "MASTER_DIR/DIR_A" will be selected /
excluded.
If
you specify "DIR_A/SUBDIR_A", "MASTER_DIR/DIR_A/SUBDIR_A"
will be selected and excluded.
2. When "Match from the beginning of directory path" is not checked
If "CACHE_DIR" is specified, "MASTER_DIR/CACHE_DIR" and "MASTER_DIR/DIR_A/CACHE_DIR" will be selected / excluded.
2.7.How to allow access to SDCARD/USB media
You can grant permissions from the Source/Destination folder or menu. Press the "Allow use external storage" button.

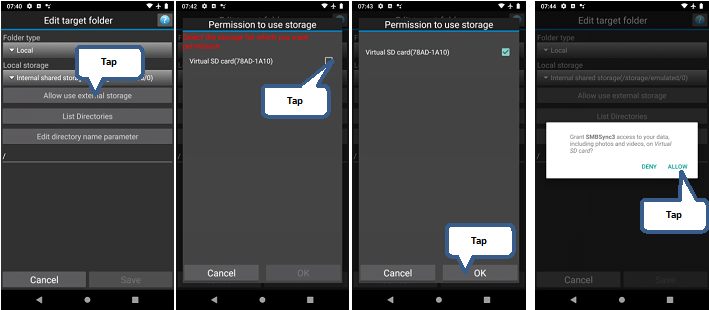

1.Screen example of Android8/8.1/9.0

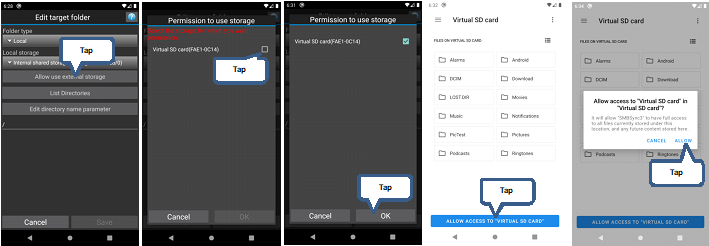

2.Screen example of Android 10
3.Schedule
3.1.Schedule option
Enable schedule
Enable/disable schedule
Schedule type
The schedule can be specified as follows
Every hour (eg, every 10 minutes)
Every day (Every day at 20:00)
Every month (executed at 10:30 on the 10th of every month)
Specify day of the week (executed at 21:00 on Monday and Friday)
Interval (Every 10 minutes, for example, every 10 minutes after
the terminal is restarted)
Reset interval schedule time
Set the synchronization start time to the interval time. (If the interval time is set to 5 minutes and the save button is pressed at 1:10:20, the task starts at 1: 15: 0)
It will make the first sync with the next minute
The first time to be performed in the interval schedule is set to be a minute ahead of the current time. (If the save button is pressed at 1:10:20, it will be 1: 11: 0)
Execute all auto sync tasks
If unchecked, you can select a synchronization task
Edit Sync List
Press the button to display the edit sync task screen. Select tasks to sync.
Turn on Wi-Fi when Wi-Fi is off at the start of sync (Not available on Android 10 or later)
If Wi-Fi is off at the start of synchronization, turn on Wi-Fi.
Delay period before sync after WIFI enable (Not available on Android 10 or later)
Wait time before starting synchronization after turning on Wi-Fi.
If you turn on Wi-Fi at the start of sync, turn off Wi-Fi after
the end of sync(Not available on Android 10 or
later)
If you turned on Wi-Fi at the start of synchronization, turn off Wi-Fi at the end of synchronization.
Sync only starts while charging
You can change the synchronization task options.
4.Description of the Menu
To start auto sync task. (Displayed as an icon at the top of the screen)
Writes sync task to the file.
Load the sync task from the file.
Delete or send a log file.
Remove the management data of SMBSync3 that are no longer needed.
Configure the following items.
Sync
User interface
SMB settings
Security
Miscellaneous
4.6.1.Sync
Wi-Fi lock
If checked, acquire Wi-Fi lock during synchronization.
Sync history
If checked, save the detailed record of synchronization. You can also see details by tapping the history on the history tab.
Prevent delay of start sync during sleep
If checked, turn on the screen at the start of synchronization to ensure resume from sleep.
Do not warn when location service disabled
Show/hide warning message.
Notification of adding external storage
Show/hide notification message.
Uncompressed file types
File extension not compressed when writing to ZIP folder.
4.6.2.User interface
Notification Messages
Playback default notification sound when sync ended
Notification Sounds
Set the conditions for displaying the message in the notification area.
Notification Sound Volume
Set whether to play the default notification sound at the end of synchronization.
Notification Vibration
Vibrate your device when sync ended
Force Portrait Orientation
Fix the screen orientation to portrait.
Screen theme
You can chose Dark/Light/Black theme.
4.6.3.SMB Settings
Restore default value
Restore default value
lmCompatibility
JCIFS LM Compatibility(Initial value:3)
Client response timeout
30000 milli sec
Disable plain text passwords
Do not encrypt password(Not checked)
useExtendedSecurity
Use extended security(Checkked)
4.6.4.Security
Security
Tap to display the detailed setting screen. If you are creating an application password, the password authentication screen will be displayed and you will not be able to proceed unless the correct password is entered.
4.6.4.1.Security settings
Application Password
CREATE PASSWORD
Create application password
REMOVE PASSWORD
Remove application password
CHANGE PASSWORD
Change application password
Items to protect
Not enabled unless an application password is created
Set the validity time of password authentication to 30 minutes
If you do not check it, re-authentication will not be performed until the application is terminated. However, when displaying the security detail setting screen, always re-authenticate.
Perform application password authentication when “Launch
application”
The application can not be started until the correct password is entered. However, the sync task runs without a password.
Perform application password authentication when “Edit task”
You can not edit until the correct password is entered.
Perform application password authentication when “Export task
list”
You can not “Export task list” until the correct password is entered.
Hide the saved account name and password when editing the SMB
folder
When checked, the saved account name and password will be blank, so please enter your account name and password again.
4.6.5.Miscellaneous
Exit cleanly
Check to kill the process at the end of the app.
Text processing of sync messages
Check to make the Android standard word wrap.
4.9.Kill the application
Kill the SMBSync3.
4.10.About SMBSync3
Load the profile from the file.
4.11.System Information
Show system information and send to developer.
5.Starting from other applications
5.1.Starting from other applications
You can initiate synchronization by issuing an intent with “com.sentaroh.android.SMBSync3.ACTION_START_SYNC” from application to action.
Intent Extra allows you to specify the tasks to synchronize.
Synchronizes the autosync task when Extra is not specified.
Code Example 1 (start synchronous tasks test1 and test2)
Intent in=new Intent("com.sentaroh.android.SMBSync3.ACTION_START_SYNC");
String prof= "test1,test2";
in.putExtra("SyncProfile", prof);
startActivity(in);
Code Example 2 (Start all auto-sync tasks)
Intent in=new Intent("com.sentaroh.android.SMBSync3.ACTION_START_SYNC");
startActivity(in);
5.1.1.Example for Tasker
Action:com.sentaroh.android.SMBSync3.ACTION_START_STNC
Extra: SyncProfile:”prof1, prof2”
Target: Activity
Sample task is here
https://drive.google.com/file/d/102YpRq_BsaB39npTAFds5l8D01-3OxXZ/view?usp=sharing
5.2.Notification of synchronization start and end
Issues a broadcast intent at the start and end of
synchronization.
Start :com.sentaroh.android.SMBSync3.ACTION_SYNC_STARTED
End :com.sentaroh.android.SMBSync3.ACTION_SYNC_ENDED
If you want the app to detect the timing of synchronization start
and end, please receive the intent on the broadcast receiver.
The exit status string is stored in ExtraData of Intent. The key
is SYNC_RESULT.
SUCCESS
ERROR
CANCEL
WARNING
Sample
Tasker
Event:System->Intent received
Action:com.sentaroh.android.SMBSync3.ACTIO_SYNC_ENDED
Action:Notify
Text:%sync_result
https://drive.google.com/file/d/1tsK8P167Wirq13RILt7OYISVyhuxkmzi/view?usp=sharing
5.3.Sample code for start SMBSync3 by Application
The following code sample to start SMBSync3 from Activity.
public class MainActivity extends Activity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
Intent in=new Intent("com.sentaroh.android.SMBSync3.ACTION_START_SYNC");
String prof= "S-PGMS,S-Pictures,INTERNAL-TO-SDCARD";
in.putExtra("SyncProfile", prof);
sendBroadcast(in,null);
}
OR
public class MainActivity extends Activity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
Intent in=new Intent("com.sentaroh.android.SMBSync3.ACTION_START_SYNC");
String prof= "S-PGMS,S-Pictures,INTERNAL-TO-SDCARD";
in.putExtra("SyncProfile", prof);
startActivity(in);
}
6.Library
jcifs-ng 2.1 SNAPSHOT Client
Library
7.About collecting and sending data in the app
The app collects the following data and saves it in a file to verify the synchronization result and to identify the cause of the error.
Directory name, file name, file size and last modified date of
file
Network interface name, IP address
User settings other than password
Error information in the app
In addition to the above when using SMB, the account name,
account password and host name (if used)
Information that is collected is not sent outside in the app. However, except when sending by user operation. (Log management, Share a history and send a system information)
See “Privacy Policy”.
8. Acknowledgments
Thank you for translating it into English for volunteers.
